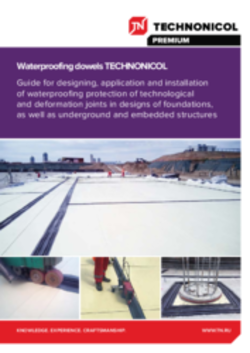

Руководство по гидрошпонкам ТЕХНОНИКОЛЬ (англ. яз.)
WWW.TN.RU KNOWLEDGE. EXPERIENCE. СRAFTSMANSHIP.
Waterproofing dowels TECHNONICOL
Guide for designing, application and installation
of waterproofing protection of technological
and deformation joints in designs of foundations,
as well as underground and embedded structures
TECHNONICOL
1
1 Scope of document 3
2 Normative references 5
3 Classification and types of waterstops, their markings and scope of application 7
4 General recommendations for installation and mounting of waterstops 13
5 Formwork and concrete works 23
6 The recommended technological procedure for installation
and concreting ofwaterstops. Installation diagrams 27
7 Welding of waterstops. Performing butt joints 37
8 Work quality requirements : 67
9 Occupational health and safety 69
Appendix 1. Nomenclature, geometric dimensions,
physical and mechanical characteristics
andfunctional zones of waterstops 69
Appendix 2. Contents of operational control
during theinstallation of waterstops 74
1
Scope of document
4
1
Scope of document
1.1. This guide has been developed for specialists of the professional construction community in order to improve
thequality of design and installation of waterproofi ng systems with the application of TECHNONICOL waterstops.
1.2. The provisions of this guide should be taken into account when developing sections of project documentation
regarding waterproofi ng, technological regulations, work plans and technological fl ow charts regulating works
onwaterproofi ng building structures with the application of TECHNONICOL waterstops.
1.3. This guide is recommended for use by employees of specialized design and construction organizations involved
in the design and installation of foundation waterproofi ng systems at industrial and civil construction sites.
1.4. The regulations can also be applied by construction organizations performing concrete works in the construction
of underground and embedded structures.
1.5. The guide contains information on TECHNONICOL waterstops applied for waterproofi ng of technological
anddeformation joints in structures of foundations, as well as underground and embedded structures.
1.6. The guide presents selection methods and criteria for the use of waterstops, as well as information on
the principles of designing joint protection using waterstops, rules for their installation, fastening and mounting,
andmethods for quality control of works performed.
1.7. This guide shall not be used instead of project or regulatory documents. When designing waterproofi ng systems
and installing waterproofi ng coverings, the requirements of national and territorial regulations on design of insulating
coatings and safety precautions in construction, as well as current regulations on occupational health and fi re safety
inconstruction, must be observed.
1.8. The illustrations presented in this guide are schematic and may diff er from the actual appearance.
1.9. If you need advice to make more accurate technical decisions on the application of waterstops, taking into
account the features of a particular site, we recommend contacting the technical support service of TECHNONICOL-
Building Systems LLC.
Normative references
2
Normative references
6
2
Normative references
2.1. While developing this Guide, references to the following regulatory documents were used
*
:
GOST 12.1.004-91 SSBT. Fire safety. General requirements;
GOST 12.4.011-89 SSBT. Safety equipment for workers. General requirements and classification;
GOST 12.4.087-84 SSBT. Construction. Safety construction hats; Specifications;
GOST 12.4.010-75 SSBT. Personal protection equipment. Special mittens. Specifications;
SNiP 12-03-2001 Construction safety requirements. Part 1. General requirements;
SNiP 12-04-2002 Construction safety requirements. Part 2. Construction operations;
SP 71.13330.2017 Insulating and finishing coatings. Revised edition of SNiP 3.04.01-87.
Occupational health and safety:
■ Federal Law of July 22, 2008 No. 123-FZ “Technical Regulations on fi re safety requirements”;
■ Decree of the Government of the Russian Federation No. 390 of April 25, 2012 “On the fi re safety regime”;
■ Order No. 155n dated March 28, 2014 “On approval of the Rules for labor protection when working at
height”;
■ Order No. 336n dated June 1, 2015 “On approval of the Rules for labor protection in construction”.
2.2. The following reference literature was used in the development of this Guide:
■ “Instructions for arranging a foundation waterproofi ng system based on LOGICBASE V-SL PVC membranes”;
■ Manual for designing and installation of waterproofi ng of foundations with the use of LOGICBASE polymer
membranes.
* During the use of this Guide, it is advisable to check the effect of reference standards and classifiers in a public
information system, i.e. on the official website of the national body of the Russian Federation for standardization on
the Internet or according to the annually published information index “National Standards”, which was published as of
January 1 of the current year, and according to the corresponding monthly published reference indexes published this
year. If a reference document was replaced (changed), then during the use of this standard, you should be guided by
to the replaced (changed) document. If a reference document was cancelled without changing, then the provision in
which it is referred to should be applied in a part that does not touch upon this reference.
3
Classification and types
ofwaterstops, their markings
and scope of application
8
3
Classification and types of waterstops,
their markings and scope of application
3.1. TECHNONICOL waterproofi ng dowels (waterstops) are profi led tapes made of plasticized PVC or thermoplastic
polyolefi nes (TPO) by extrusion.
3.2. Waterstops are used to protect technological (cold) and deformation joints from the penetration of dampness,
moisture, as well as water under pressure and without it in reinforced concrete structures of underground, embedded
parts of buildings and structures under the infl uence of surface andground waters.
3.3. According to their location in a mass concrete, waterstops are divided into internal (double-sided, central) and
external (one-sided, lateral) ones. Internal waterstops are located in the center of mass concrete and attached tothe
reinforcement, and external waterstops are located on the side of mass concrete and attached to the formwork
orPVC/TPO membrane.
3.4. According to the area of application, waterstops are divided into dowels for sealing cold joints and dowels for
sealing deformation joints, as well as dowels that are used for zoning (sectioning) of repairable waterproofi ng made
ofPVC and TPO membranes.
3.5. The nomenclature, geometric dimensions, physical and mechanical characteristics and functional zones
ofwaterstops are presented in Appendix 1.
3.6. The markings and scope of application of waterstops are presented in Table 1.
Table 1. «The markings and scope of application of waterstops»
Markings Application Illustration
External PVC waterstops for sealing technological concreting joints and zoning of repairable waterproofing made
of PVC membranes.
ЕС-220-3 External waterstops are used for
sealing working concreting joints
and dividing waterproofing systems
based on PVC membranes into
sections.
ЕS-320-4
External TPO waterstops for sealing technological concreting joints and zoning repairable waterproofing made of
TPO membranes.
EC-220-3 External waterstops are used for
sealing working concreting joints
and dividing waterproofing systems
based on TPO membranes into
sections.
EC-320-4
9
Markings
Application Illustration
Internal PVC waterstops for sealing technological concreting joints.
IC-240-2
Internal PVC waterstops for
concreting working joints and
waterproofing of joints in monolithic
concrete structures during new
construction.
IC-240-6
IC-125-2-SP Internal PVC waterstop with swelling
cords for concreting working joints
and waterproofing of joints in
monolithic concrete structures during
new construction.
External waterstops for sealing deformation joints.
EM-260/20
EM-260/50
External waterstops for sealing
deformation joints. Used during
new construction of embedded and
underground structures.
FM-140/50 External waterstop for sealing
deformation joints with finishing
placement in mass concrete.
FMR-140/50 External waterstop for sealing
deformation joints. Used when
pairing with existing structures and
previously erected structures of the
same facility.
3
10
Markings Application Illustration
Internal PVC waterstops for sealing deformation joints.
IM-240/20 Internal PVC waterstops for sealing
deformation joints when constructing
underground and embedded
facilities.
IM-260/50
3.7. Names of brands for waterstops are formed by sequentially entering alphabetic and numerical indices indicating:
— location in a mass concrete (E – External; I – Internal; F – Finish – fi nishing arrangement, one part of the
product is placed in a concrete structure, and the other part acts as the fi nishing element of the seam;
R – Renovation – one part of the product is mechanically fi xed to the existing structure, and the other part
isembedded in concrete of the structure being newly erected);
— joint type (С – Cold joint; M – Movement (deformation) joint);
— polymer feature (SP – Swelling polymer);
— waterstop width;
— deformation assembly width;
— quantity of sealing ribs.
The numerical index indicating the width of the deformation assembly is separated from the numerical index indicating
the width of the waterstop by the sign “/”, and the numerical index indicating the number of sealing ribs is separated by
the sign “–”.
How to read conventional signs in the names of waterstops:
EC-320-4 PVC waterstop
PVC ЕС 320-4
Type of polymer Classifying index Numerical index
PVC — Polyvinylchloride
TPO — Thermoplastic polyolefin
Indicates the location in a mass
concrete:
Е — External;
I — Internal. Indicates the type of joint
for which the waterstop is used:
С — Cold joint;
М — Movement (deformation) joint
Consistently indicates the width
of the waterstop, width of the
deformation assembly, and the
number of sealing anchors
3.8. In waterproofi ng systems, in addition to waterstops, products that perform the functions of waterstops are also
used to seal technological and deformation joints. Information about these products is included in the appropriate
sections of this guide to improve the use of the products. The list of such products is presented in Table 2.
3
